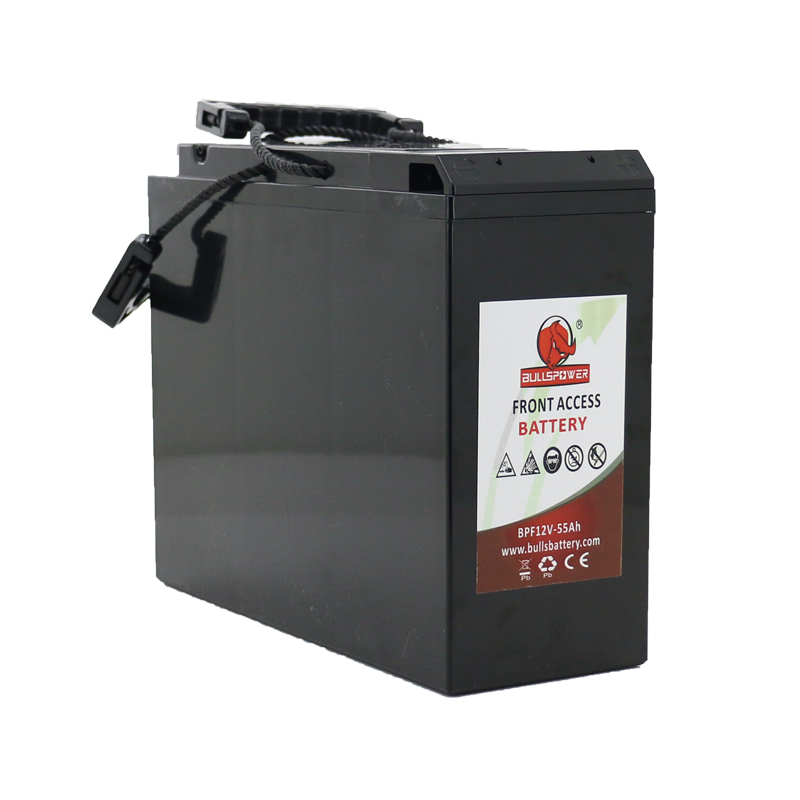

Front-Terminal Batteries 12V-55AH


    BPF series batteries are specially designed with front conversion terminal, easier for installation and save floor space, long life float service design and high energy density, used in back-up power for communication and UPS system.
Product List/Catalog Download

Features:
12 years design life at floating condition
Wide operating temperature range from -15°C to 55°C
Thick pasted plates with high quality lead-tin-calcium alloy grids for long service life
Much more energy in comparison to the battery with the same rated capacity
Front access terminal with standard width for 19" and 23"  ETSI racks
30% decreased float current lead to excellent high temperature resistance
Designed floating service life: 12 years at 20℃/68°F
Warranty: 1-2 years

Applications:

  • Communication equipment
  • Big Uninterruptible power supplies
  • Telecommunication systems
  • Electronic cash registers
  • Solar or wind power station
  • Telecommunications
  • Other Standby Systems
  • Uninterruptible Power Supply (UPS)
  • Medical Equipments
  • Emergency Power Systems



Battery Model Rated
voltage
10Hr Capacity Length External Dimension Weight Terminal
Width Height Total Height Approx(±3%)
(V) (AH) MM MM
MM MM Kgs
BPF12-55 12 55 277 106 223 223 16.0 T2
BPF12-80 12 80 562 114 188 188 25.0 T3
BPF12-100 12 100 507 110 223 223 30.0 T5
BPF12-110 12 110 394 110 286 286 31.0 T5
BPF12-125 12 125 552 110 239 239 37.5 T5
BPF12-150 12 150 551 110 288 288 44.0 T5
BPF12-160 12 160 551 110 288 288 45.0 T5
BPF12-175 12 175 546 125 316 316 53.8 T5
BPF12-180 12 180 560 125 316 316 54.2 T5
BPF12-190 12 190 560 125 316 316 55.5 T5
