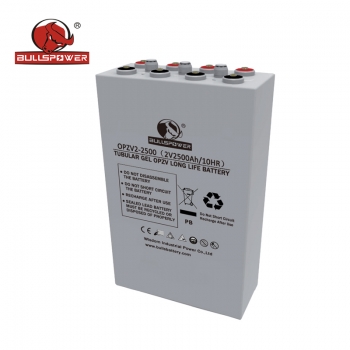

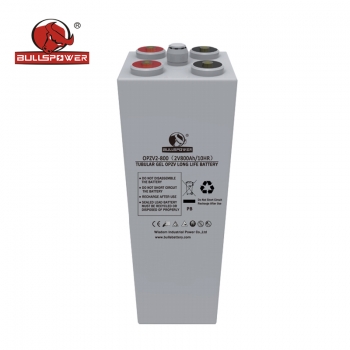

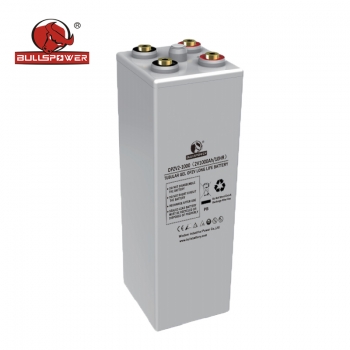

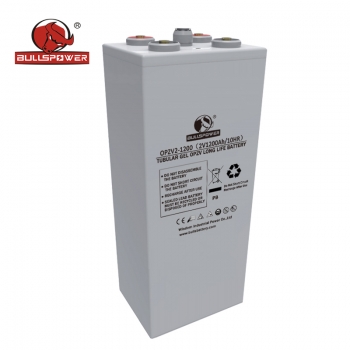

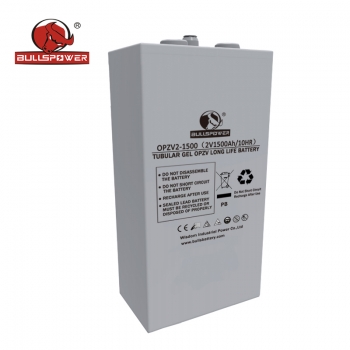

OPZV Series-Tubular Gel Batteries


    Wisdom Power is proudly making 2V OPZV batteries based on tubular plate technology and the fixing of the electrolyte in gel. With largest capacity from 120AH to 3000AH, our OPZV battery can meet your demanding requirements for energy storage needs.
Product List/Catalog Download

Features:

OPzV series is pure gel battery newly developed by using tubular positive plates with fumed gelled electrolyte, Performances meet & exceed the standards specified in DIN 40742,and it has a very long design life and very high deep cycling capabilities. This type of battery is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

● High power cycles-at least 1500 cycles under 100% D.O.D at 20℃/68°F

● Adopts special micro-pore PVC-SiO2 separator to have big porosity & low resistance

● Using gas silicon dioxide imported from Germany,electrolyte in gelled state

● The positive plate is tubular plate to prevent active materials from falling off

● Proof against deep discharge according to DIN 40742

● Designed floating service life: More than 18 years @20℃/68℉

● Warranty: 5 years

Applications:

● ​Telecommunication Equipment

● Large UPS / Standby power

● Electric power stations.

● Railway and Mining Market

● Solar & Wind power system

● Renewable energy systems

● Control equipment

● Hybrid Power System

Battery Model

Rated
voltage

20Hr Capacity

Length

External Dimension

Weight

Terminal

Width

Height

Total Height

Approx(±3%)

(V)

(AH)

MM

MM

MM

MM

Kgs

BPZV2100

2

100

103

206

354

390

11.9

M8

BPZV2150

2

150

103

206

354

390

15.4

M8

BPZV2200

2

200

103

206

354

390

16.5

M8

BPZV2250

2

250

124

206

354

390

20.3

M8

BPZV2300

2

300

145

206

354

390

24.4

M8

BPZV2350

2

350

124

206

471

506

28.5

M8

BPZV2420

2

420

145

206

471

506

32.5

M8

BPZV2500

2

500

166

206

471

506

37

M8

BPZV2600

2

600

145

206

646

681

44.2

M8

BPZV2700

2

700

254

210

471

506

52

M8

BPZV2770

2

770

254

210

471

506

56

M8

BPZV2800

2

800

191

210

646

681

60

M8

BPZV2900

2

900

233

210

646

681

69

M8

BPZV21000

2

1000

233

210

646

681

73.2

M8

BPZV21200

2

1200

275

210

646

681

87

M8

BPD12-1500

2

1500

275

210

796

831

106.5

M8

BPZV22000

2

2000

399

212

772

807

146

M8

BPZV22500

2

2500

487

212

772

807

185

M8

BPZV23000

2

3000

576

212

772

807

222

M8

Battery Model

Rated
voltage

Capacity

Length

External Dimension

Weight

Terminal

Width

Height

Total Height

Approx(±3%)

(V)

(AH)

MM

MM

MM

MM

Kgs

BPZV12100

12

100

409

176

225

225

34.5

M8

BPZV12120

12

120

485

172

240

240

43.5

M8

BPZV12160

12

160

522

238

218

221

58

M8

BPZV12200

12

200

521

269

203

223

73.5

M8
